LT3599EUH#PBF
Manufacturer:
Analog Devices
Mfr.Part #:
LT3599EUH#PBF
Datasheet:
Description:

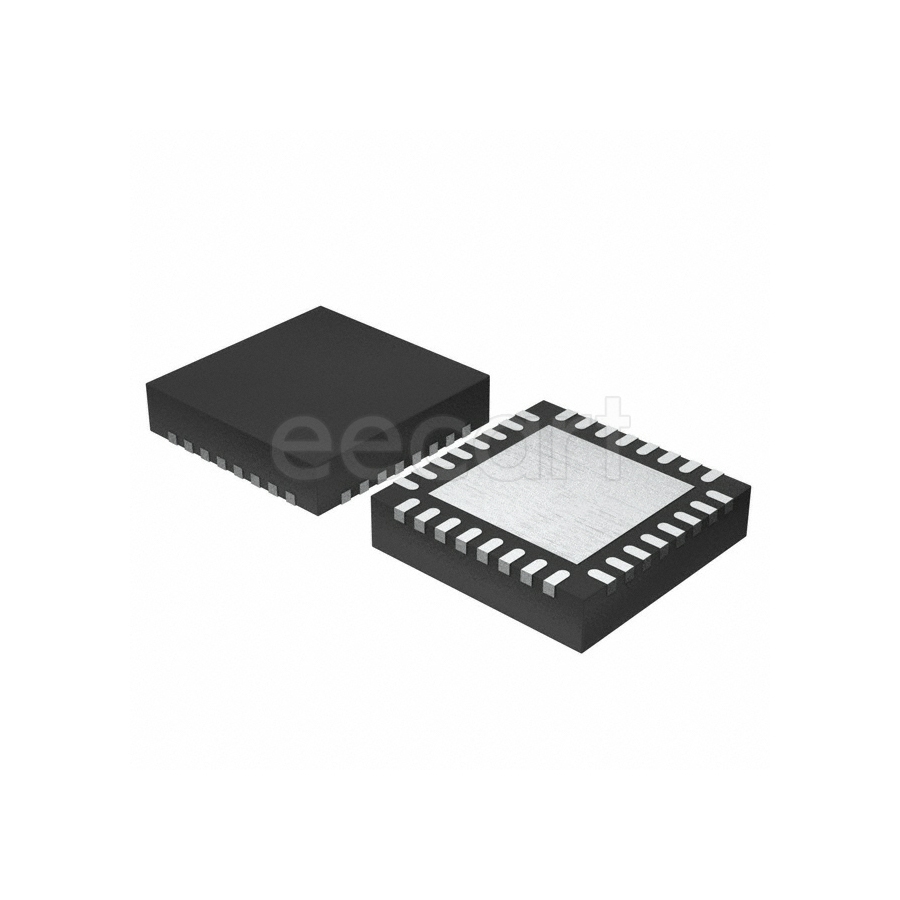

LED Drivers QFN-32 SMD/SMT Analog, PWM 120 mA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 32 |
| REACH SVHC | No SVHC |
| Frequency | 200 kHz to 2.1 MHz |
| Min Input Voltage | 3 V |
| Output Current | 120 mA |
| Output Voltage | 44 V |
| Lifecycle Status | Production (Last Updated: 3 days ago) |
| Max Supply Voltage | 30 V |
| Min Supply Voltage | 2.7 V |
| Topology | Boost |
| Switching Frequency | 2.06 MHz |
| Max Input Voltage | 30 V |
| Number of Outputs | 4 |
| Number of Segments | 40 |
| Schedule B | 8542390000 |
| Dimming | Analog, PWM |
| Internal Switch | Yes |
| Packaging | Tube |
| Type | DC DC Regulator |
| Output Current per Channel | 120 mA |
| Max Supply Current | 4.8 mA |
| RoHS | Compliant |
Stock: 1620
Distributors
pcbx
pcbxUnit Price$6.53936
Ext.Price$6.53936
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.53936 | $6.53936 |
| 10 | $4.45590 | $44.55900 |
| 25 | $4.44991 | $111.24775 |
| 50 | $4.19949 | $209.97450 |
| 100 | $3.96317 | $396.31700 |
| 300 | $3.74015 | $1122.04500 |
| 500 | $3.52968 | $1764.84000 |
| 1000 | $3.33105 | $3331.05000 |
| 3000 | $3.14360 | $9430.80000 |
| 5000 | $2.96660 | $14833.00000 |
